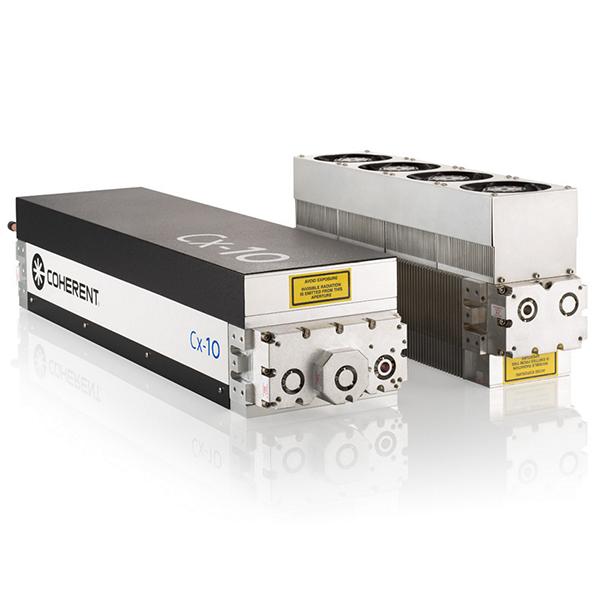

Coherent’s Diamond Cx-10 Series sealed CO2 lasers enable high quality marking, engraving, and cutting, while also offering low maintenance and operating costs. In addition, the lasers offer the best power–size ratio available, and are designed for high reliability and easy serviceability. The modular design allows a lower cost field replacement of the laser head assembly or RF Module assembly. Superior processing results are possible because Diamond Cx-10 Series lasers combine excellent beam quality with exceptional power stability and fast pulse fall times. Together, these factors maximize process efficiency, and minimize the heat affected zone (HAZ). Plus, a variety of wavelengths, from 9.3 µm to 10.6 µm, allow laser output to be optimally matched to specific material absorption characteristics.
FEATURES & BENEFITS
• Compact design with the highest power/volume ratio in its class
• Superior beam quality, power stability, and reliability
• Available in four wavelengths: 9.3 µm, 9.6 µm, 10.2 µm, and 10.6 µm
• Field-serviceable modular design
• Global logistics ensure delivery of replacement parts within 48 h in most geographies
APPLICATIONS
• High volume marking, cutting, and engraving
• Film cutting and processing
• Process wide range of materials from acrylics, cardboard, ceramics, glass, polymer films, leather, paper, textiles, wood, and PCBs
